Accessories for all
requirements

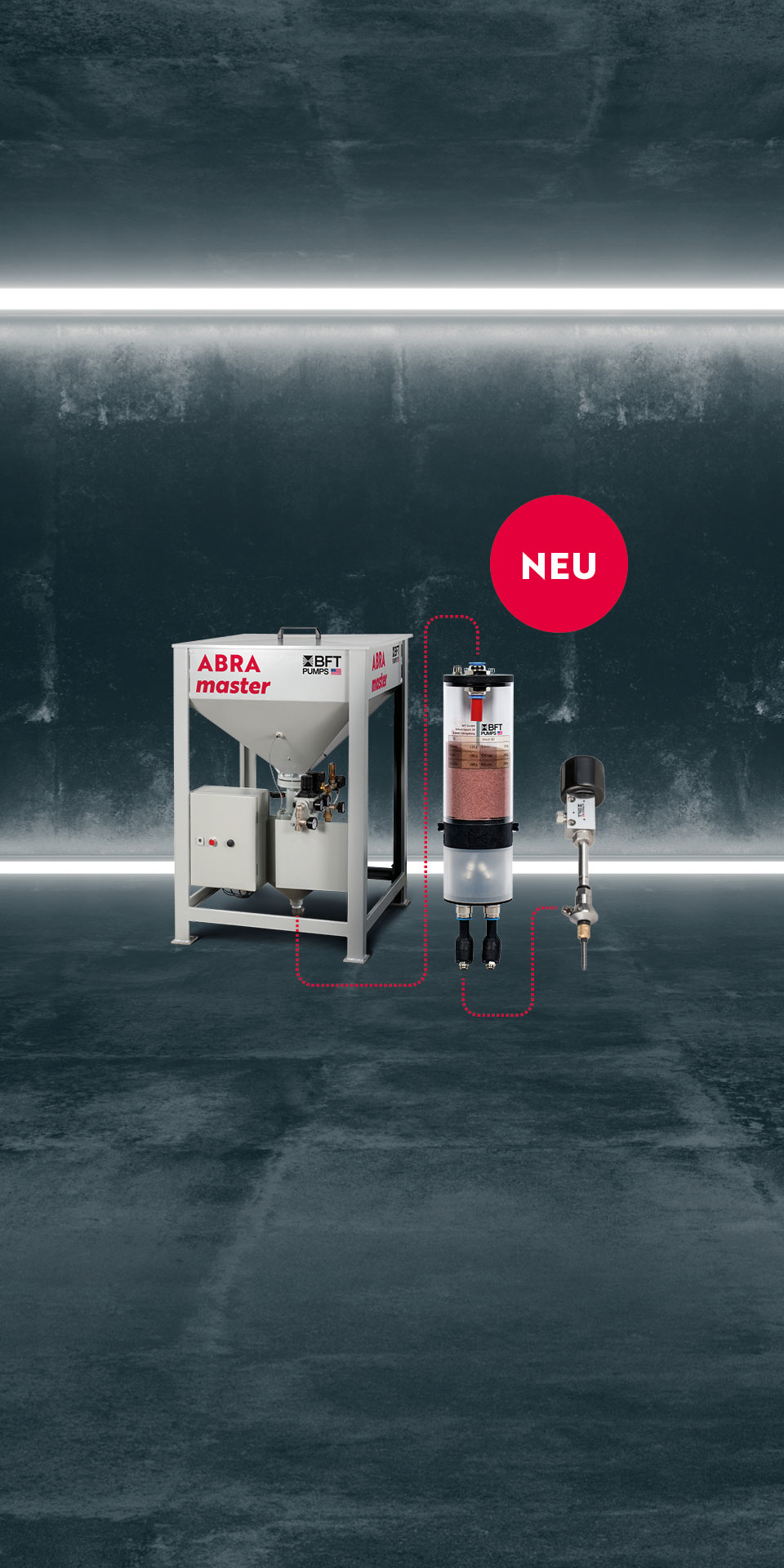

ABRAmaster

The ABRAmaster abrasive cutting system for fast and precise abrasive cutting.

The easy-to-use system guarantees reliable delivery as well as precise dosing of abrasives to the water jet to achieve high cutting quality on stone, metal, ceramics, glass, composites, etc.

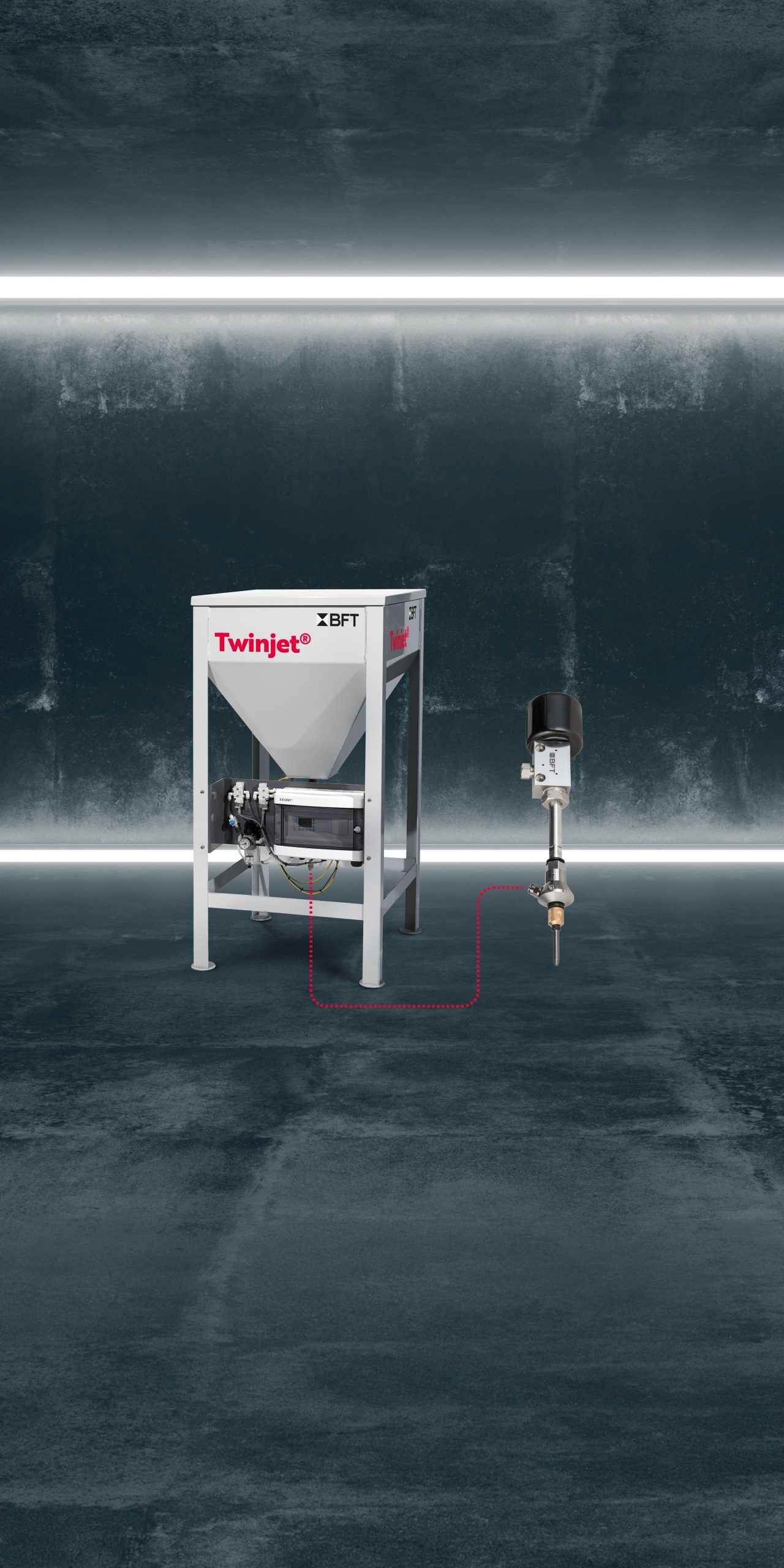

TWINJET®

The perfect accessory for pure-water and abrasive waterjet cutting

The TWINJET® system comprises several components. With waterjet cutting, differentiation is generally made between two methods: cutting with pure waterjets and abrasive waterjet cutting. TWINJET® is suitable for both versions. The application limit in view of material thickness for both methods is about 11,8 in.

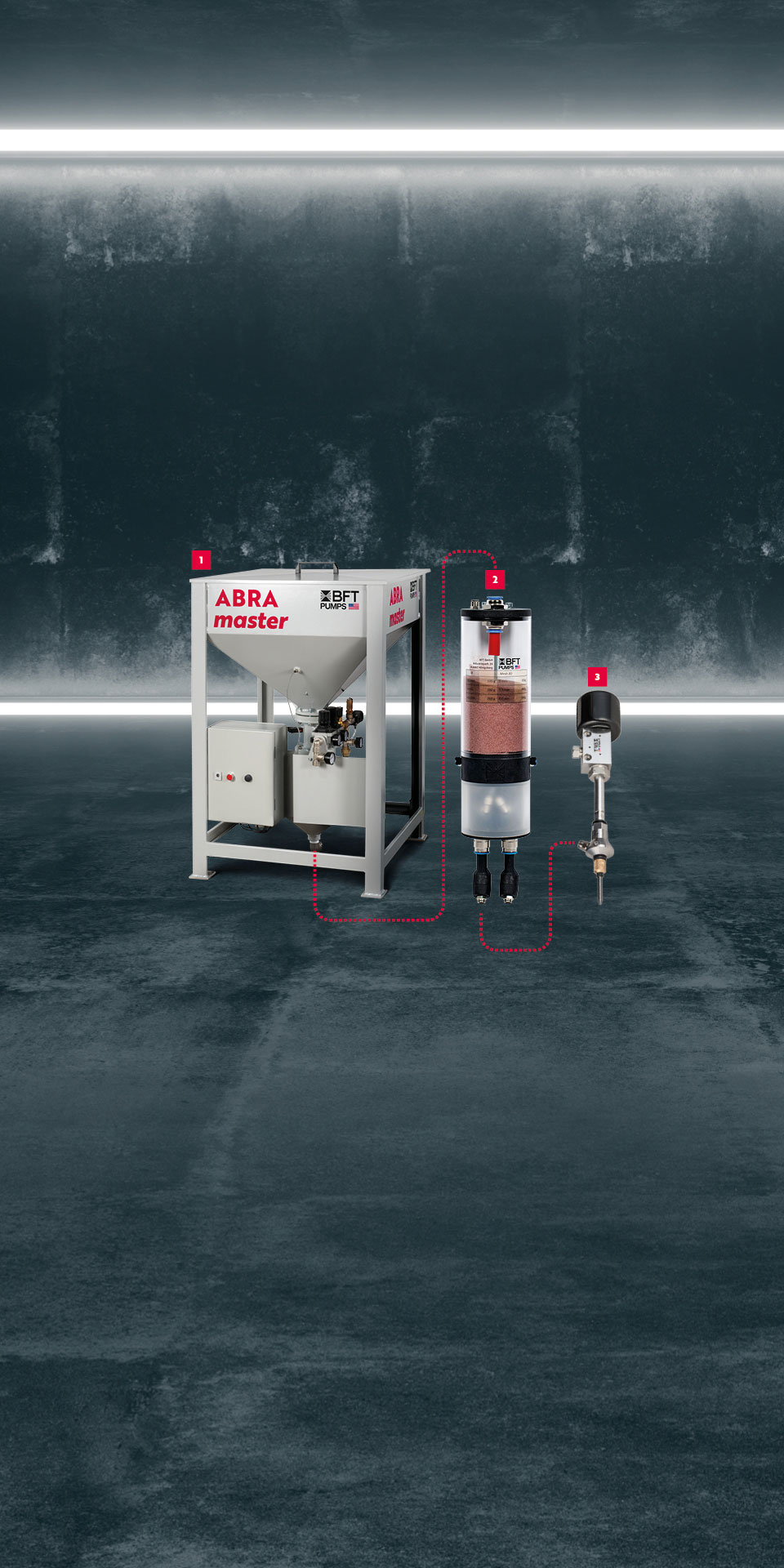

1. ABRASIVE CONTAINER WITH CONVEYOR SYSTEM
(ABRAfeeder)

• 1,000 lb/ 2,200 lb / 4,400 lbs capacity (with granite sand)
• Maximum flow rate 8.8 lbs/min

2. ABRASIVE DOSING UNIT
(ABRAdoser)

• Precisely accurate abrasive dosing
• Dosing quantity 0 – 2.42 lbs/min
• 24 VDC supply voltage
• 36 psi maximum compressed air supply
• Optionally also available as a double version with two integrated dosing nozzles

3. WATERJET VALVE OR CUTTING HEAD

The BFT waterjet valve is designed as an open/closed switch valve which is switched via a pneumatic piston drive. The cutting nozzle required for waterjet cutting is attached directly to the collimation tube of the switch valve via a nozzle holder. Operation with an operating overpressure of up to 60,000 psi and a maximum flow rate of up to 5.0 l/min is possible. We offer high-quality cutting heads for all BFT high-pressure pumps in diameters from 0.003 – 0.018 in mm.

Your bonus: The waterjet valve was pre-treated at our plant and does not require periodic maintenance.

1. WATERJET VALVE

• To switch the water jet on and off
• 60,000 psi max. permissible positive operating pressure
• 70-100 psi required compressed air supply
• 1 seconds max. switching time

2. ABRASIVE HEAD

• Suitable for attachment to the BHDT waterjet valve
• Optionally available with two integrated dosing nozzles
• Nozzles with diameters from 0.003 – 0.018 in available

3. FOCUSING TUBE

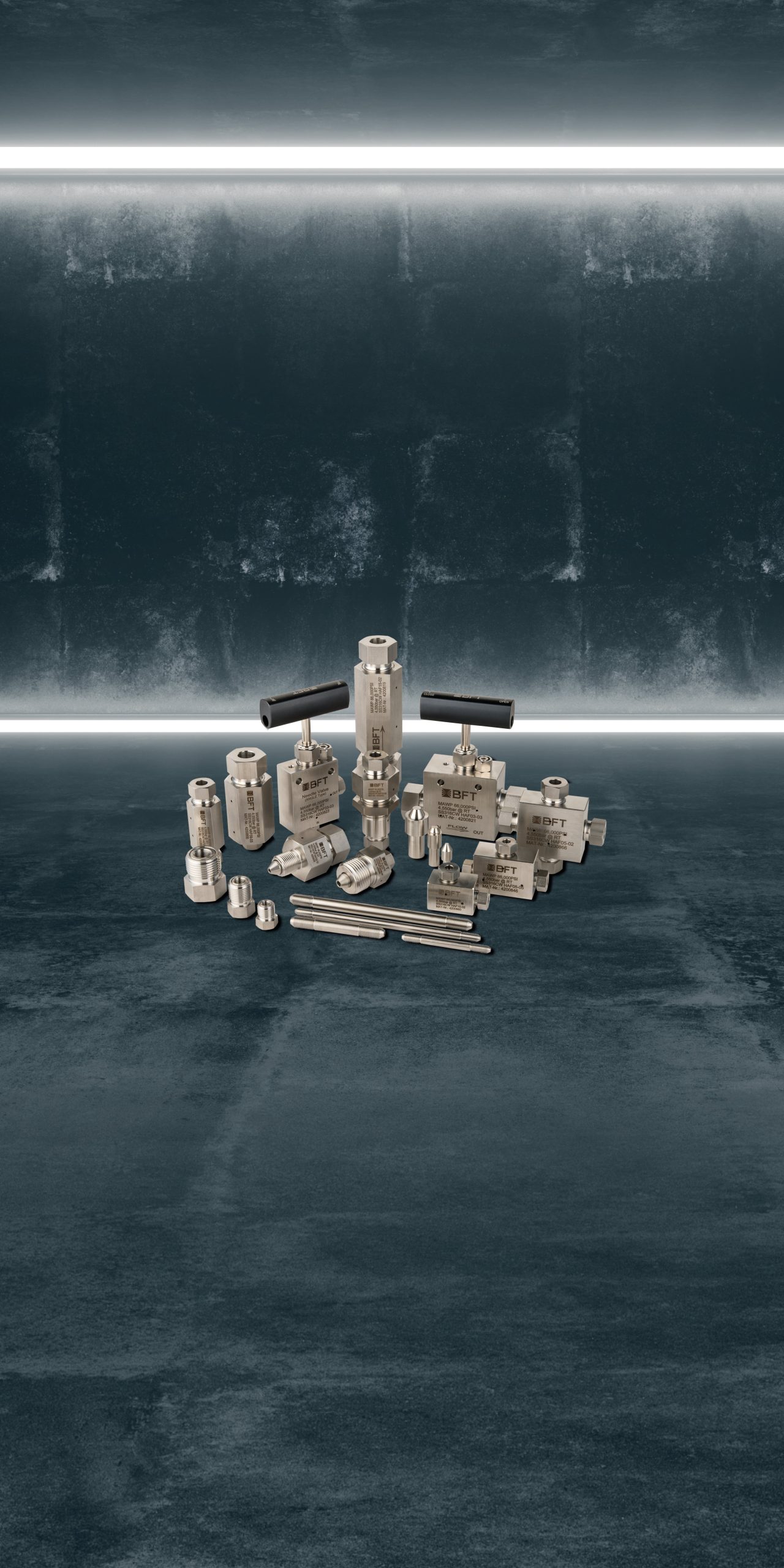

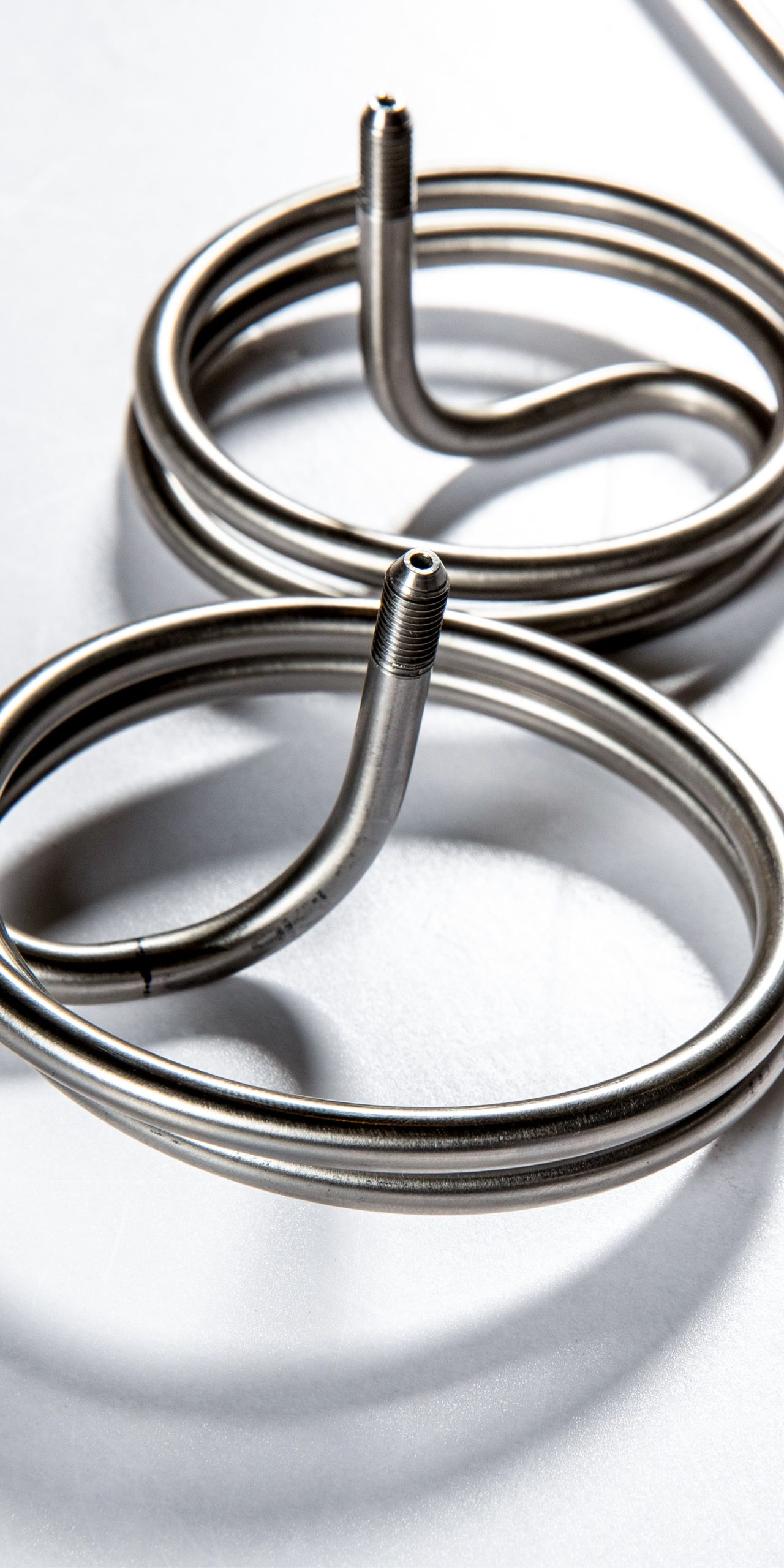

As a full-range supplier of waterjet cutting technology, we naturally also offer installation material such as valves, filters and pipes – all of them high quality and from a single source.
