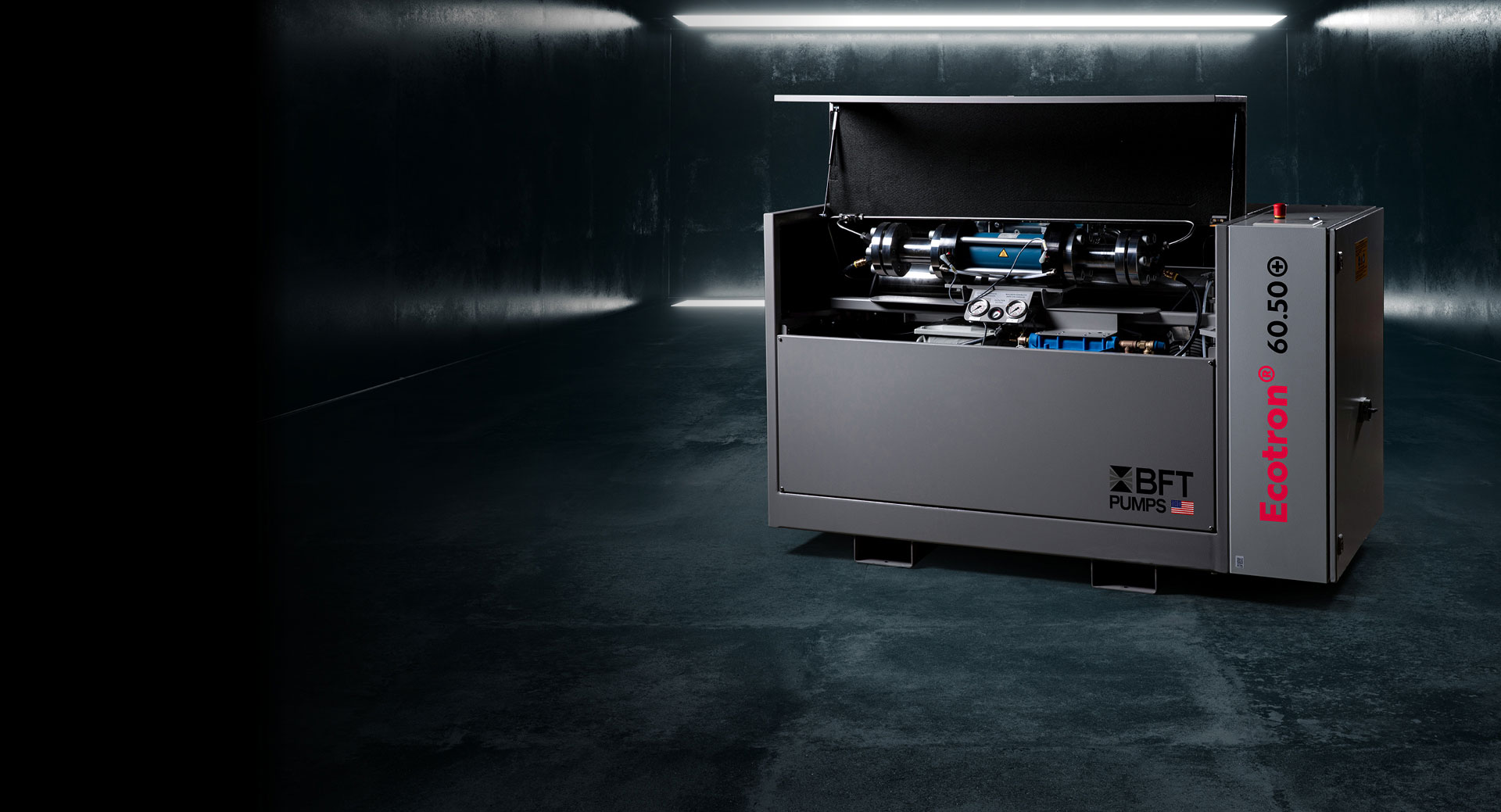

ECOTRON®
high-pressure
pump

As a leading company in the field of high-pressure pumps for waterjet cutting, BFT – Best Fluid Technology – is your contact for innovative ready-to-use solutions.

Start configuration >>>

“ECOTRON® is pure performance and little effort – equipped with high-quality additional components.”

Proven technology that shines with its features and first-class price-performance ratio.

The ECOTRON® high-pressure pump is available in the power classes 15 HP to 60 HP. Its numerous increments allow individual adaptation to every requirement. ECOTRON® is our basic model with flow rates between 0.9 l and 2.5 l per minute and an operating pressure of 50.000 to 60.000 psi. It thus strikes the perfect balance between long maintenance intervals and high cutting speed.



WHY SHOULD YOU CHOOSE A EUROPEAN PRODUCT?

  • Because they are adjusted to the requirements of European companies.
  • Because they are designed taking into consideration a responsible treatment of our resources.
  • Because they are easy to service and all common metrical tools match.
  • Because they meet European standards and quality expectations

Optimized cutting process through many extras

Pressure is generated with an axial piston pump, precisely regulated by the standard proportioning valve. The good equipment with a proportioning valve in the hydraulics and the finely selectable relief valve allows you to optimize all cutting processes with ECOTRON®. This lets you get the best high pressure cut for your material. The high-quality reliable intensifier and the large accumulator with a storage volume of 0.9 l to 2.5 l then also ensure an even pressure signal for a flawless cut.

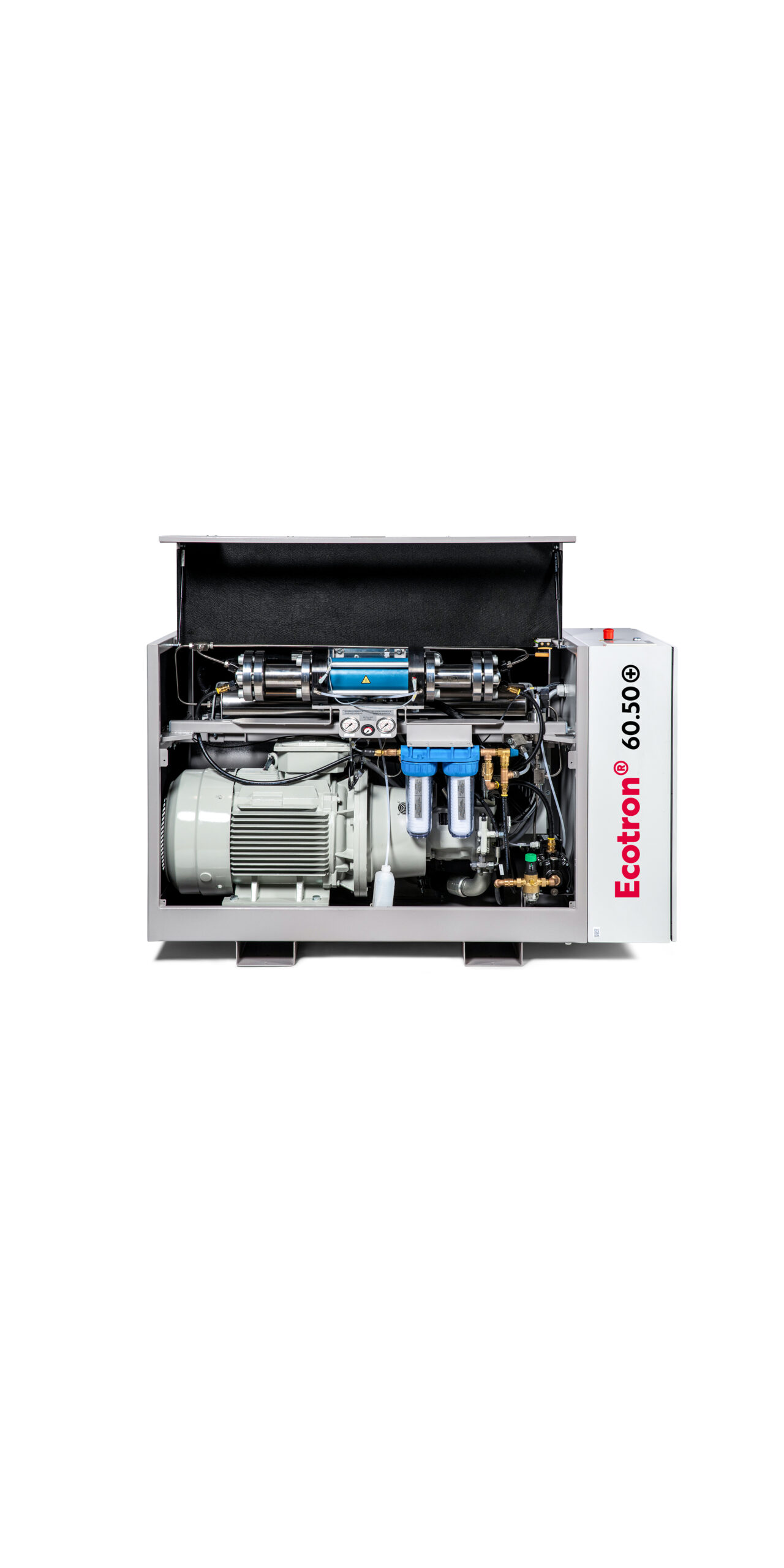

You get the best equipment with the basic model already: Its equipment includes the complete drive hydraulics with oil/water cooler, intensifier, accumulator and pressure relief valve.

Technical details ECOTRON®
60.15/60.25/60.25+/60.30/60.30/60.50/60.60/60.60+
Driving power, main motor 15 - 60 HP
Max. flow rate 0.3 - 1.1 GPM
Design pressure 61.000 psi
Permissible operating pressure, max. 50.000 - 60.000 psi
Double stroke rate, max. 20/17/17/30/35/38/38/40 min-1
Intensification ratio 1:21.78
Accumulator, storage volume 0.9 - 2.5 l
Oil tank volume 37 GPM
Ambient temperature on oil/air cooler 50 - 95 °F
Ambient temperature on oil/water cooler 50 - 113 °F
Water consumption with oil/water cooler, approx 0.5 - 3.1 GPM

The product advantages at a glance

Built-in oil/air cooler saves money, protects the environment and is essential for CE marking

The accumulator ensures good cutting patterns and little wear and tear

Dual filter units keep foreign matter away from the intensifier and prevent damage

Service-friendly equipment with clearly visible pressure gauges, safety valve and high-pressure intensifier

An on/off signal of the waterjet valve can also be installed

Preventive Maintenance

As an option, you can connect each one of our high-pressure pumps to the mains and thus have it maintained by us via remote control without any further effort.

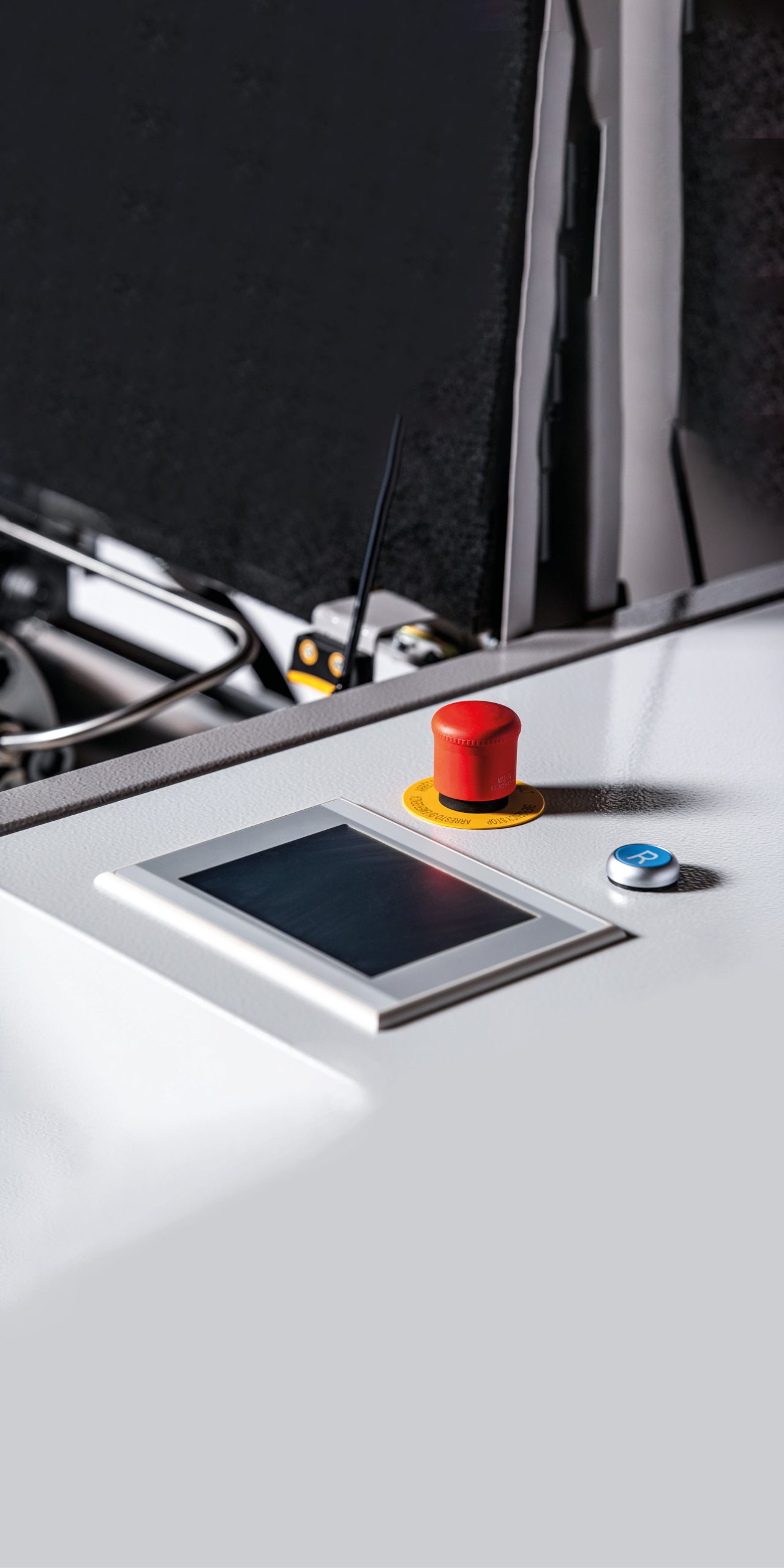

Simple control

Electronic control with meaningful extras as standard

  • Color touch display for easy operation
  • All warning and monitoring functions appear in plain text
  • Operating data are recorded and can be called up via the display
  • Available in many languages
  • Stepless pressure setting from 7.500 to 60.000 psi

Downloads

    Do you have any questions?

    Call us on 219 648 2948 or use the contact form.
