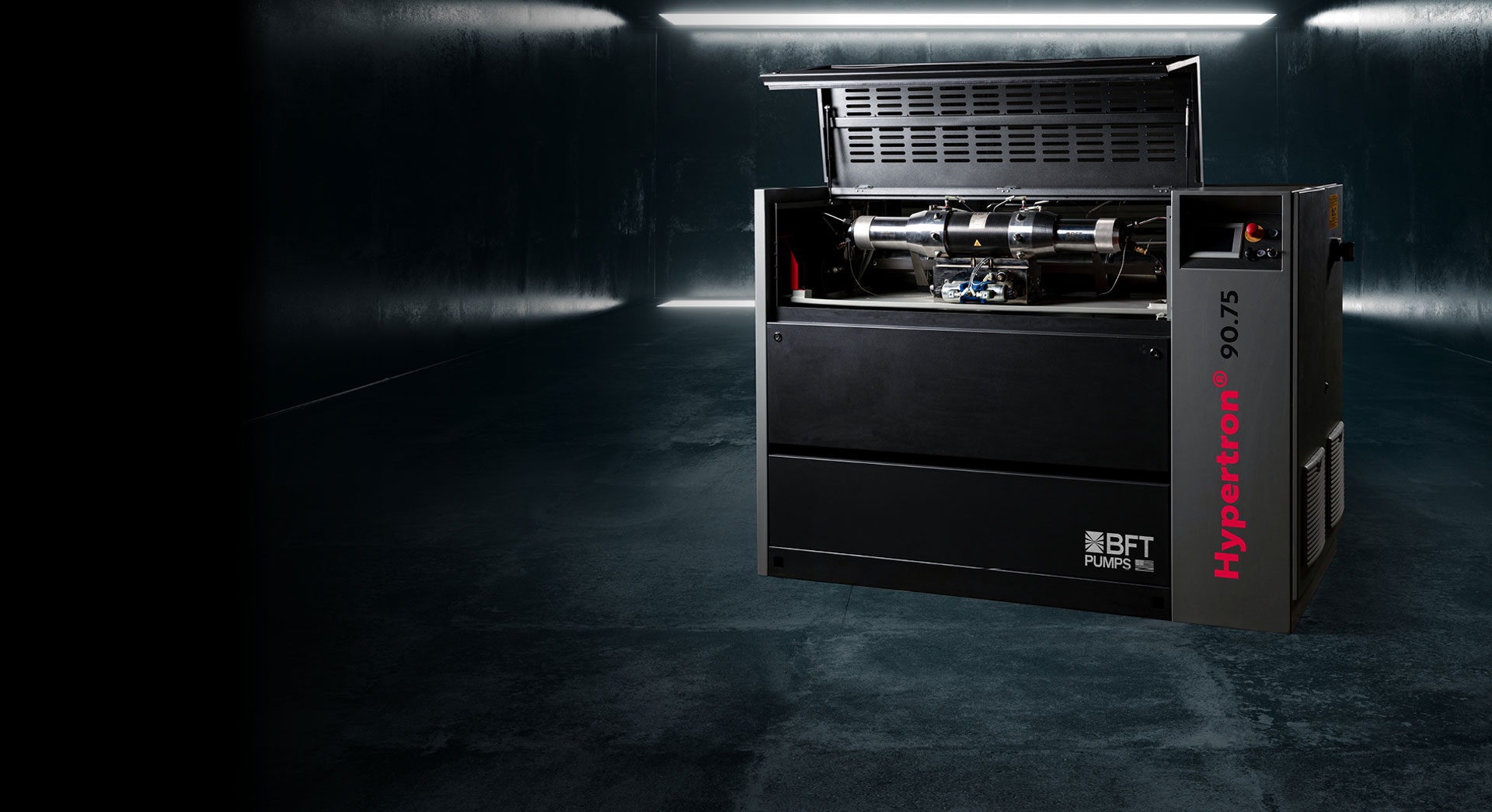

HYPERTRON®
high-pressure
pump

As a leading company in the field of high-pressure pumps for waterjet cutting, BFT – Best Fluid Technology – is your contact for innovative ready-to-use solutions.

Start configuration >>>

“The HYPERTRON® is a 90,000 psi pump – specifically designed for increased productivity.”

Absolute top performance: Faster than conventional high-pressure pumps.

With HYPERTRON®, you can reach a 30 to 50 % higher cutting speed and energy efficiency thanks to ultra-high pressure technology. It does not matter here if you want to work with two cutting heads or only with one cutting head, HYPERTRON® provides the right pressure – from 7,500 to 90,000 psi. Flexibility and high performance combined in one product.



WHY SHOULD YOU CHOOSE A EUROPEAN PRODUCT?

  • Because they are adjusted to the requirements of European companies.
  • Because they are designed taking into consideration a responsible treatment of our resources.
  • Because they are easy to service and all common metrical tools match.
  • Because they meet European standards and quality expectations

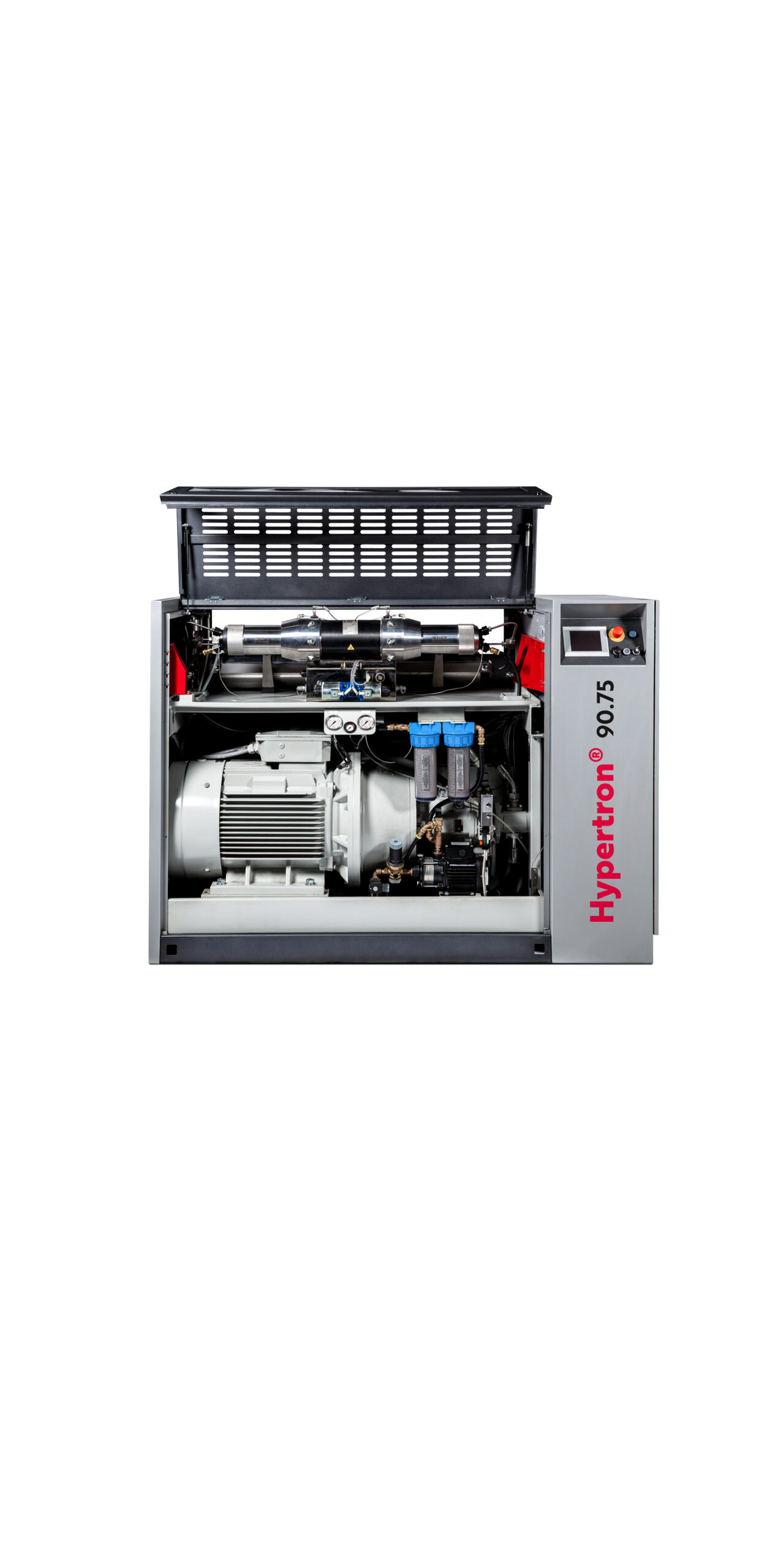

Axial piston pump with asynchronous motor

In the HYPERTRON® high-pressure pumps, an axial piston pump with electronic pressure/flow controller is driven by an asynchronous motor with frequency inverter. The hydraulic units have high control dynamics. The use of two soft-switching hydraulic valves with specially matched control geometry ensures extremely short switching times.

The high-pressure pump has stepless settings from 7,500 to 90,000 psi. The distinguishing features of the intensifier are the long service lives of the patented high-pressure seals and the easily accessible non-return valves. The special design of the external non-return valves ensures that the intensifier is very easy to maintain.

Technical details Hypertron® 90.75
Driving power, main motor 75 HP
Flow rate, max at 87,000 psi (nozzle 0.011”) 0.9 GPM
Flow rate, max at 77,000 psi (nozzle 0.013") 0.9 GPM
Flow rate, max at 65,000 psi (nozzle 0.014”) 1.1 GPM
Flow rate, max at 60,000 psi (nozzle 0.016”) 1.2 GPM
Design pressure 90,000 psi
Permissible operating pressure, max. 87,000 psi
Permissible uninterrupted operating pressure, max. 77,000 psi
Stroke rate, max. 35 min-1
Intensification ratio 1:29.75
Accumulator, volume 1.7 l
Oil tank volume 42.2 GPM
Ambient temperature on oil/air cooler 50-95 °F
Ambient temperature on oil/water cooler 50-113 °F
Water consumption with oil/water cooler, approx. 3.1 GPM

The product advantages at a glance

Built-in oil/air cooler saves money, protects the environment and is essential for CE marking

Asynchronous motor and ultra-high pressure provide a 30 to 50 % higher cutting speed

Dual filter units keep foreign matter away from the intensifier and prevent damage

The upcoming valve maintenance is displayed by temperature sensors here

Flexibility and full liter capacity at 90,000 psi through electronically controlled hydraulic pump

Preventive maintenance

As an option, you can connect each one of our high-pressure pumps to the mains and thus have it maintained by us via remote control without any further effort.

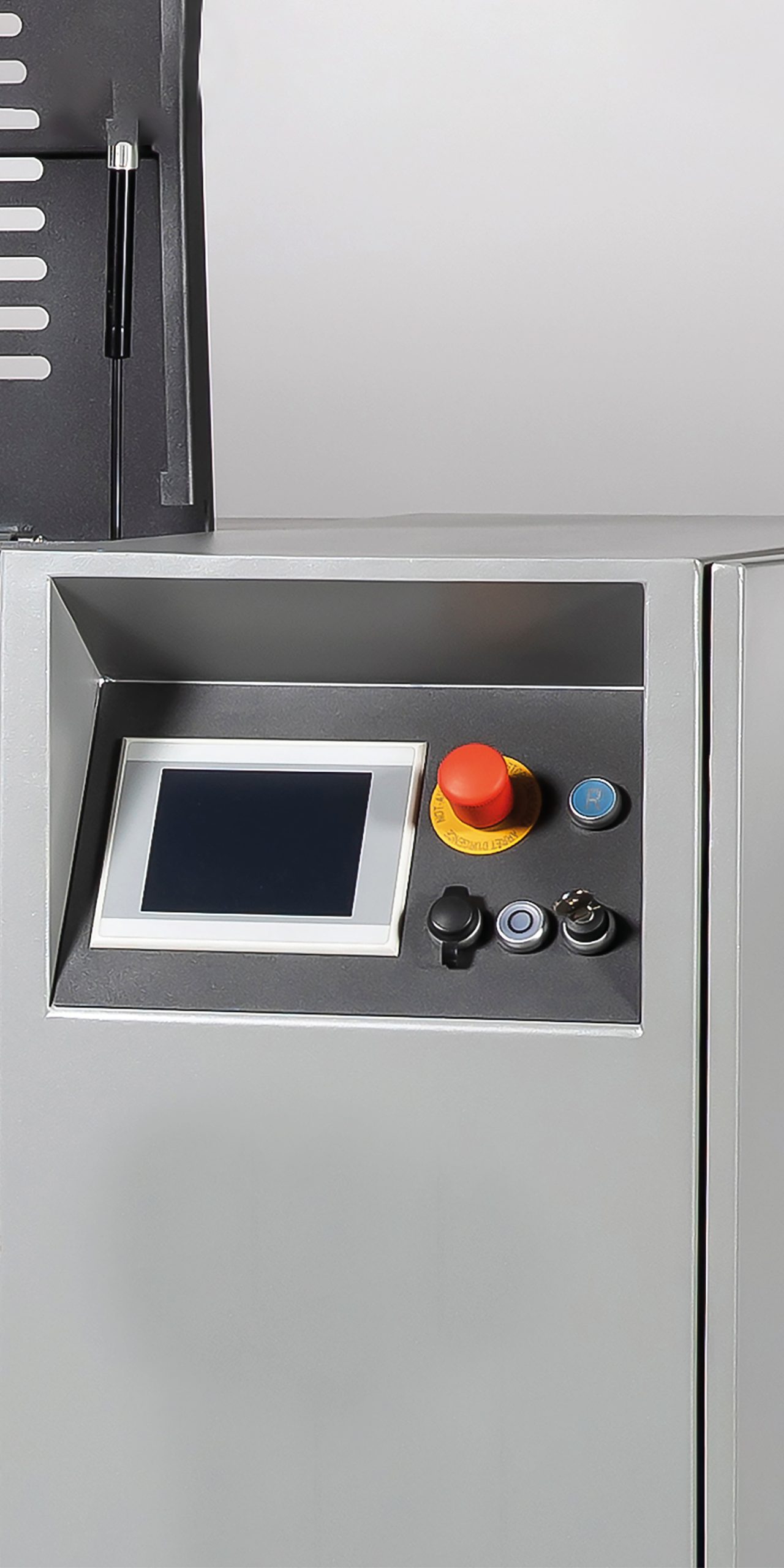

Simple control

Electronic control with meaningful extras as standard

  • Color touch display for easy operation
  • All warning and monitoring functions appear in plain text
  • Operating data are recorded and can be called up via the display
  • Available in many languages
  • Stepless pressure setting from 7,500 to 90,000 psi
  • Various analysis functions through temperature sensors
  • Professional bus connection to the machine control
  • Frequency inverter to control the asynchronous motor
