VECTRON®
high-pressure
pump

As a leading company in the field of high-pressure pumps for waterjet cutting, BFT – Best Fluid Technology – is your contact for innovative ready-to-use solutions.

Start configuration >>>

“VECTRON® gives you the full performance of a high-pressure pump at a fraction of the energy cost.”

Directly driven and unique – the direct drive pump from BFT for your entry into waterjet cutting technology!

The VECTRON® pump series is the origin of an energy-efficient and environmentally friendly high-pressure unit for waterjet cutting. Equipped with a direct drive pump, the VECTRON® is approx. 25 % more energy-efficient than direct drive pumps.



WHY SHOULD YOU CHOOSE A EUROPEAN PRODUCT?

  • Because they are adjusted to the requirements of European companies.
  • Because they are designed taking into consideration a responsible treatment of our resources.
  • Because they are easy to service and all common metrical tools match.
  • Because they meet European standards and quality expectations

One drive system for every challenge

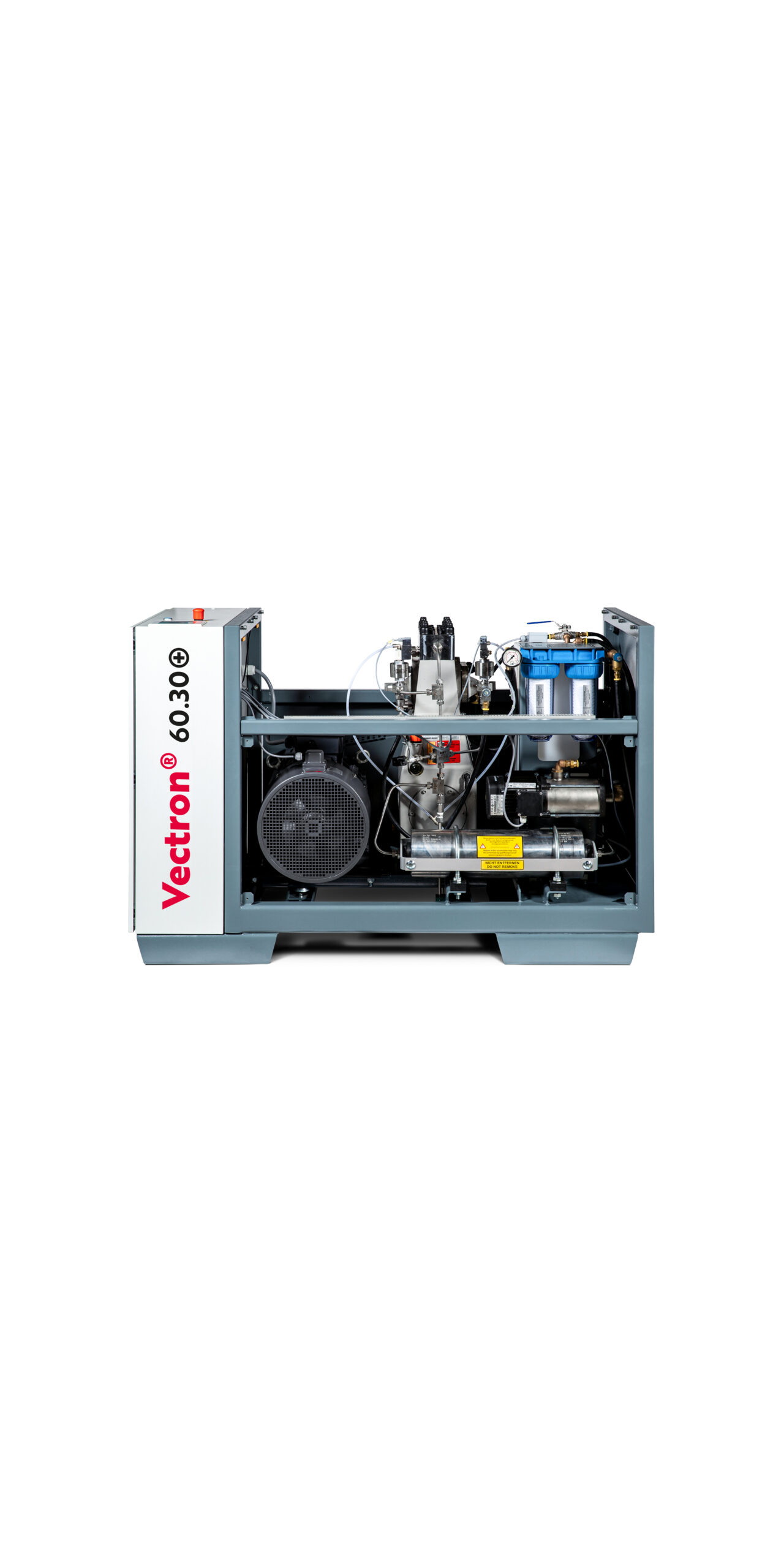

A crankshaft is driven via a frequency-controlled electric motor. The water is brought to pressure via three pistons connected to the crankshaft. The built-in pre-pressure pump and the double pre-filter unit with 5 µm and 1.2 µm ensure optimum water supply for the high-pressure pump.



The combination of a frequency-controlled crank drive and built-in accumulator according to Pressure Equipment Directive 2014/68/EU, with a reservoir capacity of 0.9 liters, enables a harmonic pressure curve with fluctuations of less than +/-1 % of the maximum operating pressure. This has a positive effect on the cutting result, especially in abrasive waterjet cutting.

Technical details VECTRON®
60.30
Driving power, main motor 30 HP
Max. flow rate 0.9 GPM
Design pressure 60,000 psi
Max continuous operating pressure, max. 55,000 psi
Accumulator size 0.9 l

The product advantages at a glance

Built-in oil/air cooler saves money, protects the environment and is essential for CE marking

The accumulator ensures good cutting patterns and little wear and tear

Dual filter units keep foreign matter away from the intensifier and prevent damage

Service-friendly equipment with clearly visible pressure gauges, safety valve and high-pressure intensifier

An on/off signal of the waterjet valve can also be installed

Preventive Maintenance

As an option, you can connect each one of our high-pressure pumps to the mains and thus have it maintained by us via remote control without any further effort.

Simple control

Electronic control with meaningful extras as standard

  • Color touch display for easy operation
  • All warning and monitoring functions appear in plain text
  • Operating data are recorded and can be called up via the display
  • Available in many languages
  • Stepless pressure setting from 7,500 to 55,000 psi
